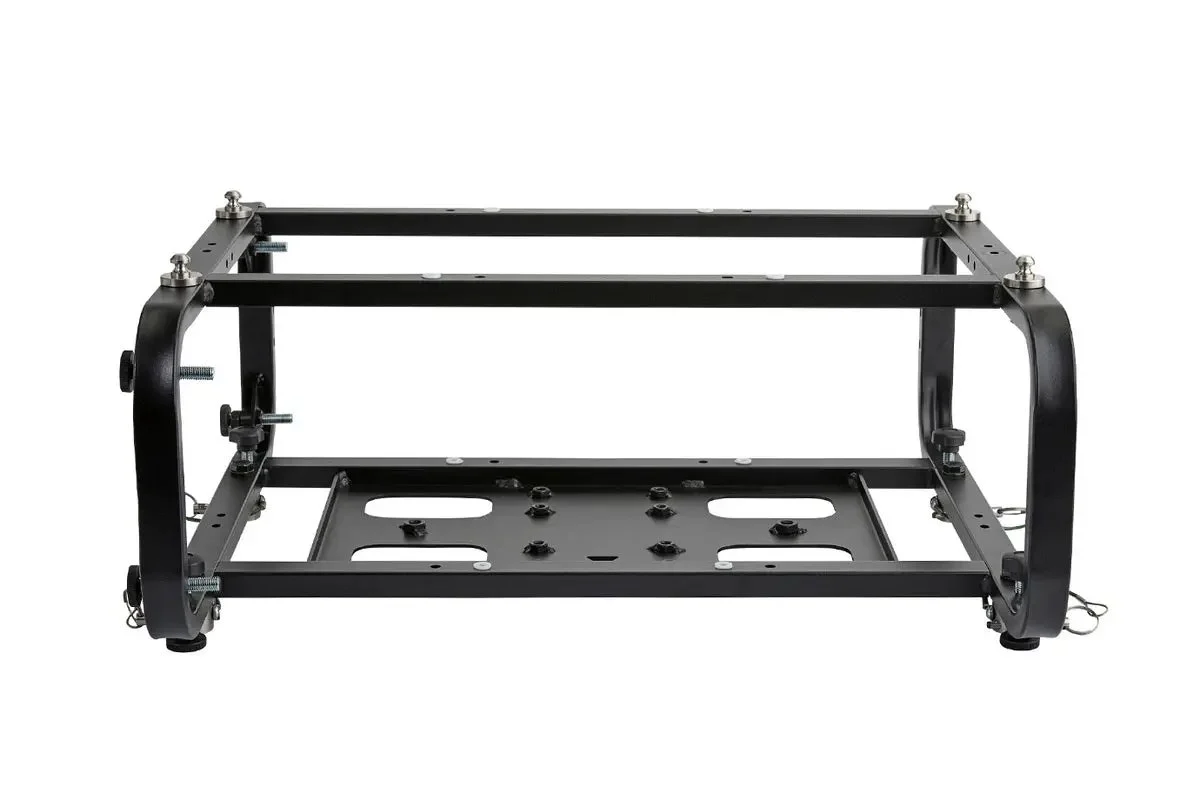

Epson ELPMB76 Projector Stacking Frame

Projector stacking frame with modular design and extensive accessories.

The ELPMB76 Projector Stacking Frame delivers a robust and flexible stacking solution. Offering a cost-effective way to dramatically increase displayed image brightness and add redundancy, the ELPMB76 enables vertical or horizontal stacking of multiple projectors. Placement is flexible, with suspended installation and floor installation options. The stacking frame also acts as a protective enclosure, providing you with peace of mind during installation and handling.

The modular design of the ELPMB76 allows for the easy addition of a broad range of accessories for powerful added functionality. For additional truss mounting flexibility, the stacking frame attaches to the ELPMB80 Truss Adapter Bar or ELPMB78 Portrait Adapter Bar. For precise tilt adjustment, pair the frame with the ELPMB81 Tilt Adapter or ELPMB77 Tilt Adapter Plate. And for fast and precise installation of projectors that lack a zoom lens, utilize the ELPMB85 Rail Adapter for fine forward and backward adjustment of the projector distance from the screen.

Capable of vertical and horizontal projector stacking
Protects the projector; provides easy handling
Intuitive modular system of accessories
Stack cages for flexible installation
Directly fasten truss clamps to the frame

Model: V12H006AN0

Vertical and horizontal stacking of multiple projectors — allows for higher displayed image brightness¹ and redundancy
Added peace of mind — stacking frame protects the projector from impact and makes it easy to grasp and move the projector
Intuitive modular system of accessories — allows you to choose the most appropriate level of fine adjustment and mounting flexibility for a particular installation
Flexible installation — stack up to two cages for suspended installation and up to three cages for floor installation
Accommodates truss clamps — features two threaded holes for M10 thread truss clamps

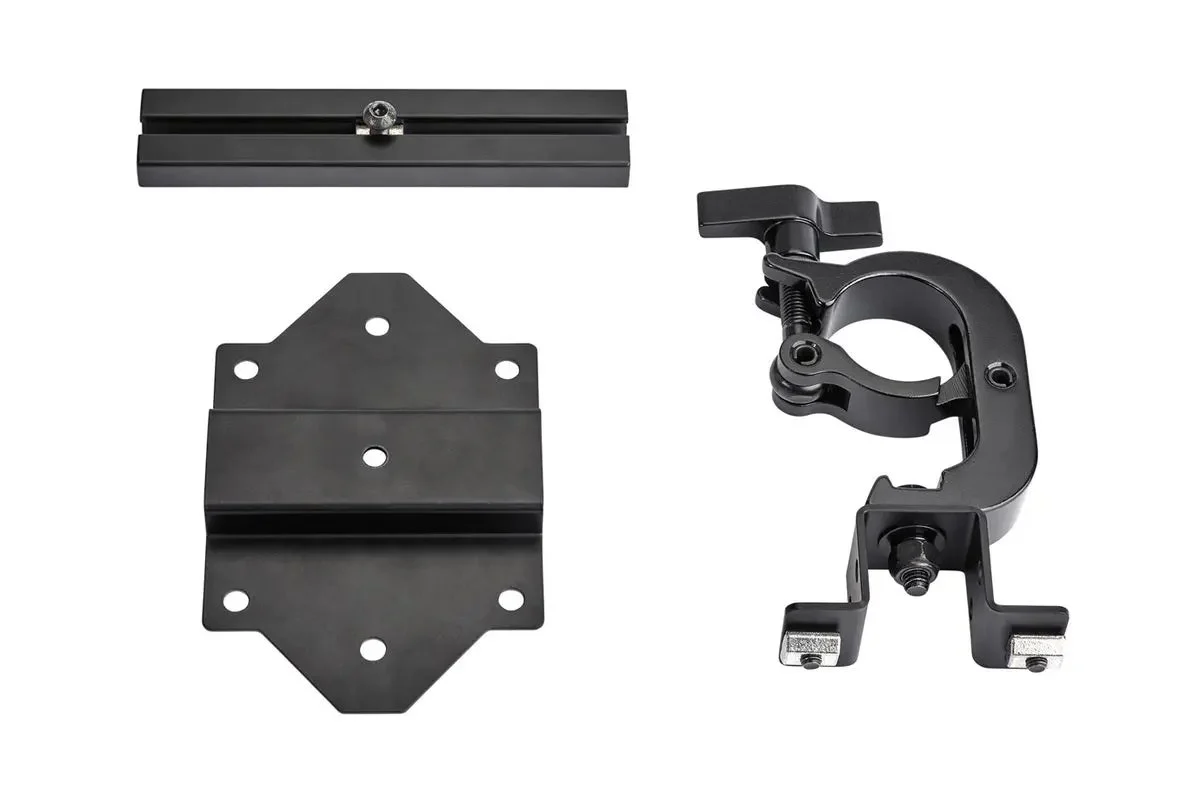

Truss mount bar option — attach bars for simple and fast truss mounting: ELPMB80 for standard mounting and ELPMB78 for portrait projection mounting

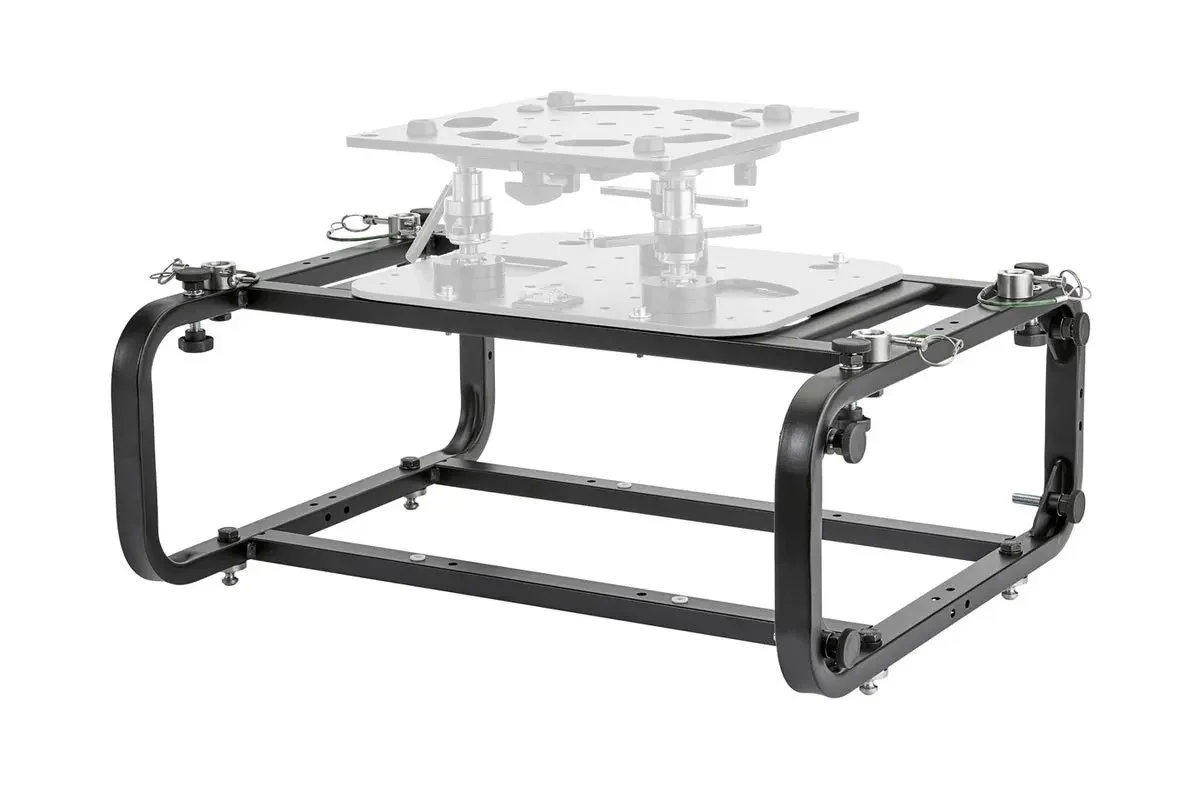

Versatile tilt adjustment option — for fine tilt adjustment, utilize the ELPMB81 Tilt Adapter or the ELPMB77 Tilt Adapter Mounting Plate for extra precision
Precise adjustment — for fast and precise installation of ultra short throw (UST) or other projectors without a zoom lens, utilize the ELPMB85 Rail Adapter for fine forward/backward adjustment
Robust engineering — steel design; includes eight M6 screws and eight adjustable feet for vertical or horizontal stacking; compatible with standard VESA (100 x 100 and 100 x 200); weight: 19.6 lb (8.9 kg)
Convenient design — for outstanding functionality and ease of use; dimensions (W x D x H): 25'' x 21.3'' x 11'' (635 mm x 542 mm x 281 mm); color: black

Works with :

Large Venue Projectors

Enhance your projection experience with the Epson ELPMB76 Projector Stacking Frame. This robust stacking solution offers:

- Vertical and horizontal stacking for increased image brightness and redundancy
- Flexible installation options, including suspended and floor setups
- A protective enclosure for peace of mind during handling
- An intuitive modular design that accommodates a wide range of accessories for added functionality

Easily attach the frame to the ELPMB80 Truss Adapter Bar or ELPMB78 Portrait Adapter Bar for additional flexibility. Achieve precise tilt adjustments with the ELPMB81 Tilt Adapter or ELPMB77 Tilt Adapter Plate. For quick installation of non-zoom projectors, the ELPMB85 Rail Adapter allows fine adjustments.

Maximize your projection capabilities with the ELPMB76 and enjoy enhanced performance, safety, and versatility.
