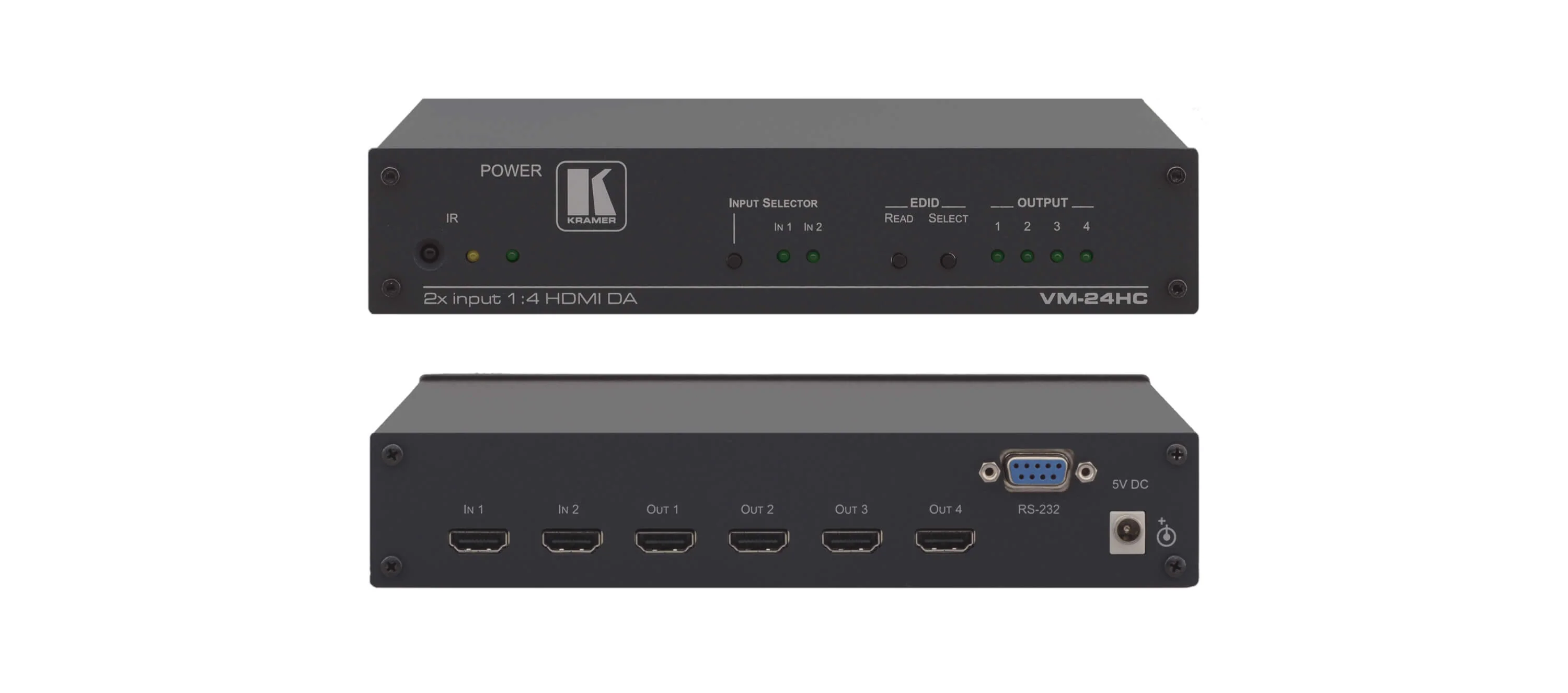

Kramer VM-24HC 2x1:4 Compact HDMI Switchable Distribution Amplifier

The Kramer VM-24HC is a high-performance HDMI switcher and distribution amplifier, designed to accept one of two HDMI inputs and distribute the selected signal to four HDMI outputs. It supports a maximum data rate of 6.75Gbps, ensuring high-quality signal transmission for demanding multimedia and presentation environments. Featuring Kramer's proprietary Equalization and re-Klocking technology, this unit effectively rebuilds digital signals to allow for longer cable runs without loss of quality. The device is HDCP compliant and supports advanced features including Deep Color, x.v.Color, and 7.1 uncompressed audio channels, as well as 3D pass-through. EDID pass-through and handling algorithms ensure seamless Plug and Play operation for your source and display systems. Control is flexible, offering options via the front panel, IR remote, or RS-232, making it suitable for home theater, rental, and staging applications. Its compact desktop size allows for convenient placement, with the option to mount two units side-by-side in a 1U rack space.

Input	2 HDMI
Output	4 HDMI
Max Data Rate	6.75Gbps
Compliance	HDCP Compliant, HDTV Compatible
Audio Support	Up to 7.1 Uncompressed Audio Channels
Control	Front panel, IR remote, RS-232
Form Factor	Compact desktop (Rack mountable with optional adapter)
Power Supply	5V DC
