Kramer VP-12NHD 1:12 Computer Graphics Video HDTV Distribution Amplifier

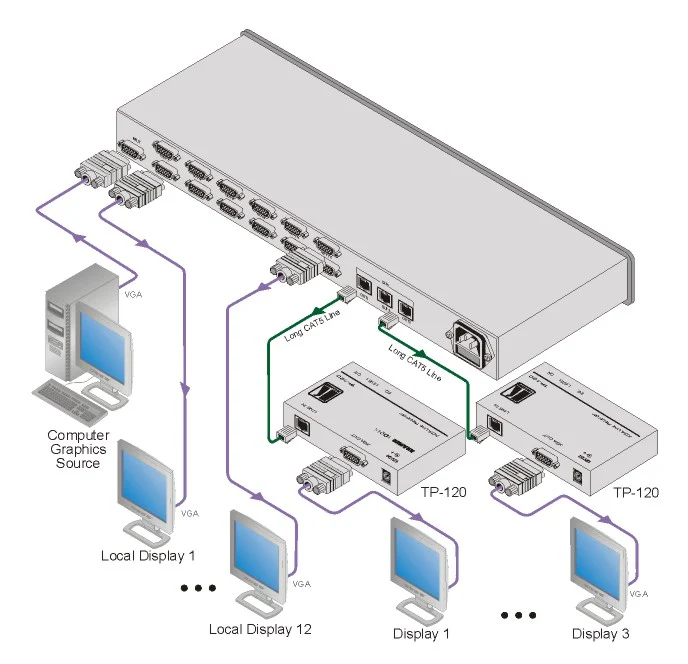

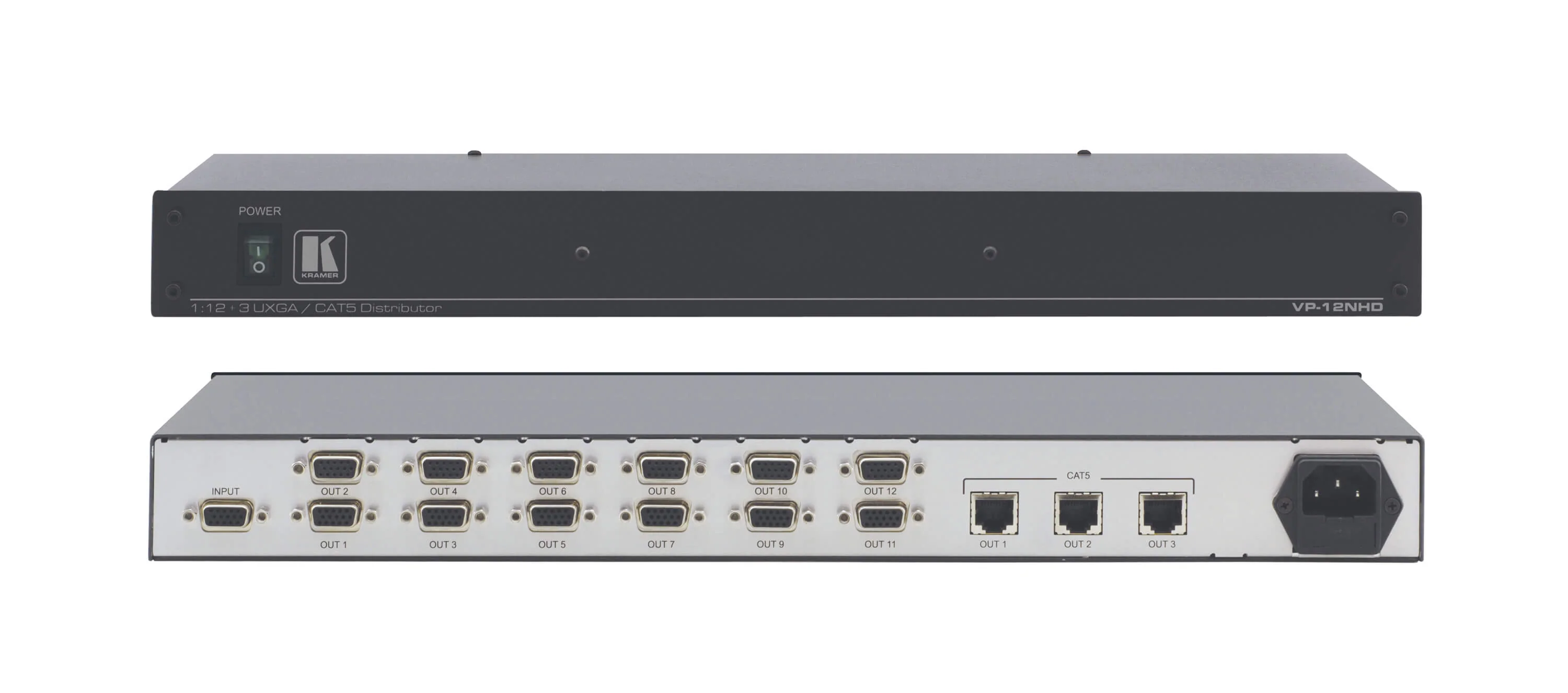

The VP-12NHD is a high-performance distribution amplifier engineered for computer graphics and HDTV signals. It features one input, providing precise buffering and isolation, while distributing the signal to twelve 15-pin HD outputs and three twisted pair outputs. Designed for flexibility, it includes sync polarity settings to improve display compatibility with CAT 5 outputs. The integrated Power Connect™ system allows a single transmitter connection to power all receivers within a 50-meter range. Featuring a 330MHz bandwidth and support for resolutions up to WUXGA and 1080p, it ensures signal integrity over long distances up to 100 meters. This 1U rack-mountable unit is an ideal solution for multimedia applications in schools, hospitals, and security environments.
| Bandwidth | 330MHz (-3dB) |
| Max Resolution | WUXGA & 1080p |
| Input | 1 x 15-pin HD |
| Outputs | 12 x 15-pin HD, 3 x RJ-45 (Twisted Pair) |
| Range | Up to 100m (328ft) |
| Power Connect System | Yes |
| Rack Size | 1U |
| Connector Type | 15-pin HD, RJ-45 |
$835.00
Kramer VP-12NHD 1:12 Computer Graphics Video HDTV Distribution Amplifier—
$835.00
More Images
Kramer VP-12NHD 1:12 Computer Graphics Video HDTV Distribution Amplifier
The VP-12NHD is a high-performance distribution amplifier engineered for computer graphics and HDTV signals. It features one input, providing precise buffering and isolation, while distributing the signal to twelve 15-pin HD outputs and three twisted pair outputs. Designed for flexibility, it includes sync polarity settings to improve display compatibility with CAT 5 outputs. The integrated Power Connect™ system allows a single transmitter connection to power all receivers within a 50-meter range. Featuring a 330MHz bandwidth and support for resolutions up to WUXGA and 1080p, it ensures signal integrity over long distances up to 100 meters. This 1U rack-mountable unit is an ideal solution for multimedia applications in schools, hospitals, and security environments.
| Bandwidth | 330MHz (-3dB) |
| Max Resolution | WUXGA & 1080p |
| Input | 1 x 15-pin HD |
| Outputs | 12 x 15-pin HD, 3 x RJ-45 (Twisted Pair) |
| Range | Up to 100m (328ft) |
| Power Connect System | Yes |
| Rack Size | 1U |
| Connector Type | 15-pin HD, RJ-45 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The VP-12NHD is a high-performance distribution amplifier engineered for computer graphics and HDTV signals. It features one input, providing precise buffering and isolation, while distributing the signal to twelve 15-pin HD outputs and three twisted pair outputs. Designed for flexibility, it includes sync polarity settings to improve display compatibility with CAT 5 outputs. The integrated Power Connect™ system allows a single transmitter connection to power all receivers within a 50-meter range. Featuring a 330MHz bandwidth and support for resolutions up to WUXGA and 1080p, it ensures signal integrity over long distances up to 100 meters. This 1U rack-mountable unit is an ideal solution for multimedia applications in schools, hospitals, and security environments.
| Bandwidth | 330MHz (-3dB) |
| Max Resolution | WUXGA & 1080p |
| Input | 1 x 15-pin HD |
| Outputs | 12 x 15-pin HD, 3 x RJ-45 (Twisted Pair) |
| Range | Up to 100m (328ft) |
| Power Connect System | Yes |
| Rack Size | 1U |
| Connector Type | 15-pin HD, RJ-45 |
