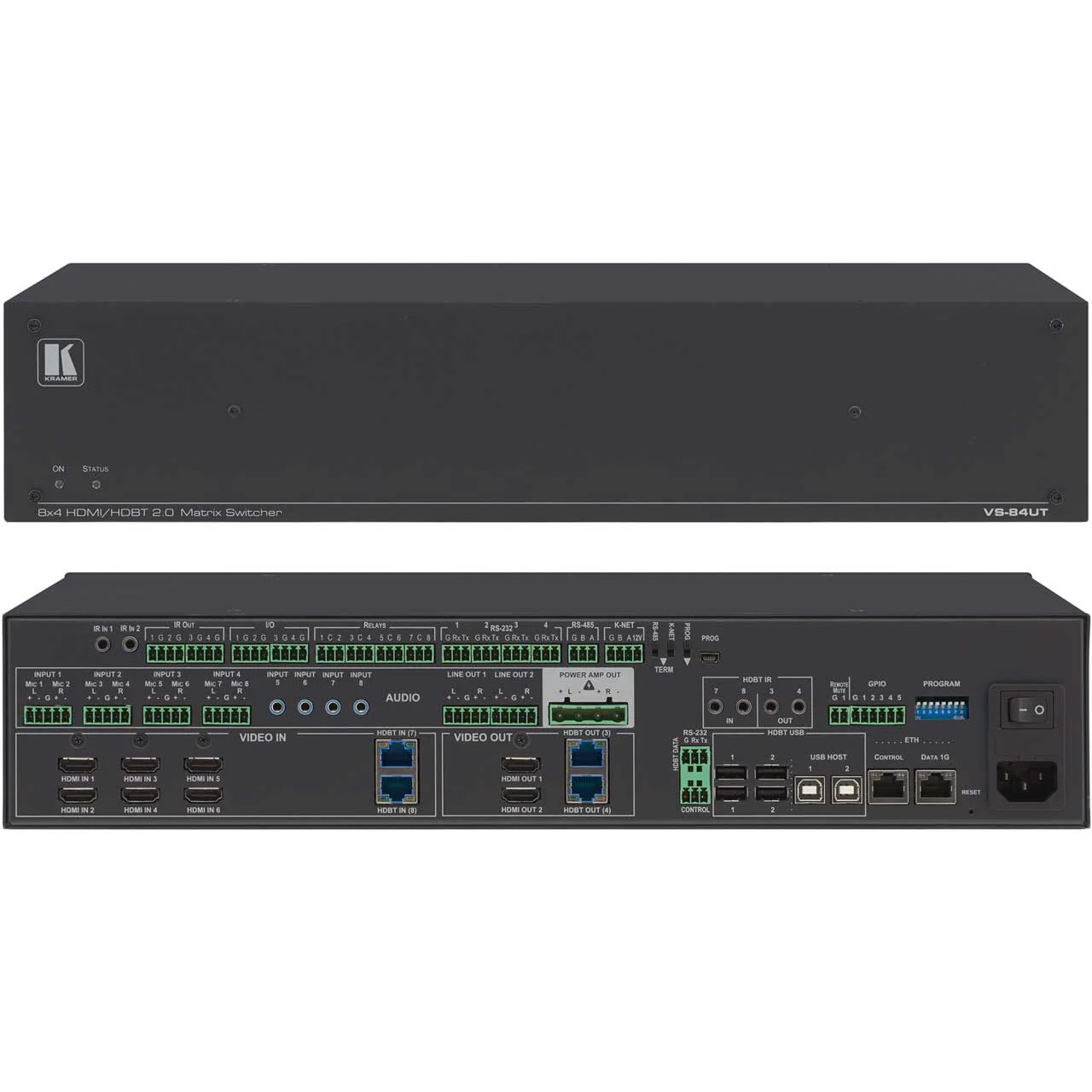

Kramer VS-84UT All-in-One 4K60 Presentation System with 8x4 Matrix Switching

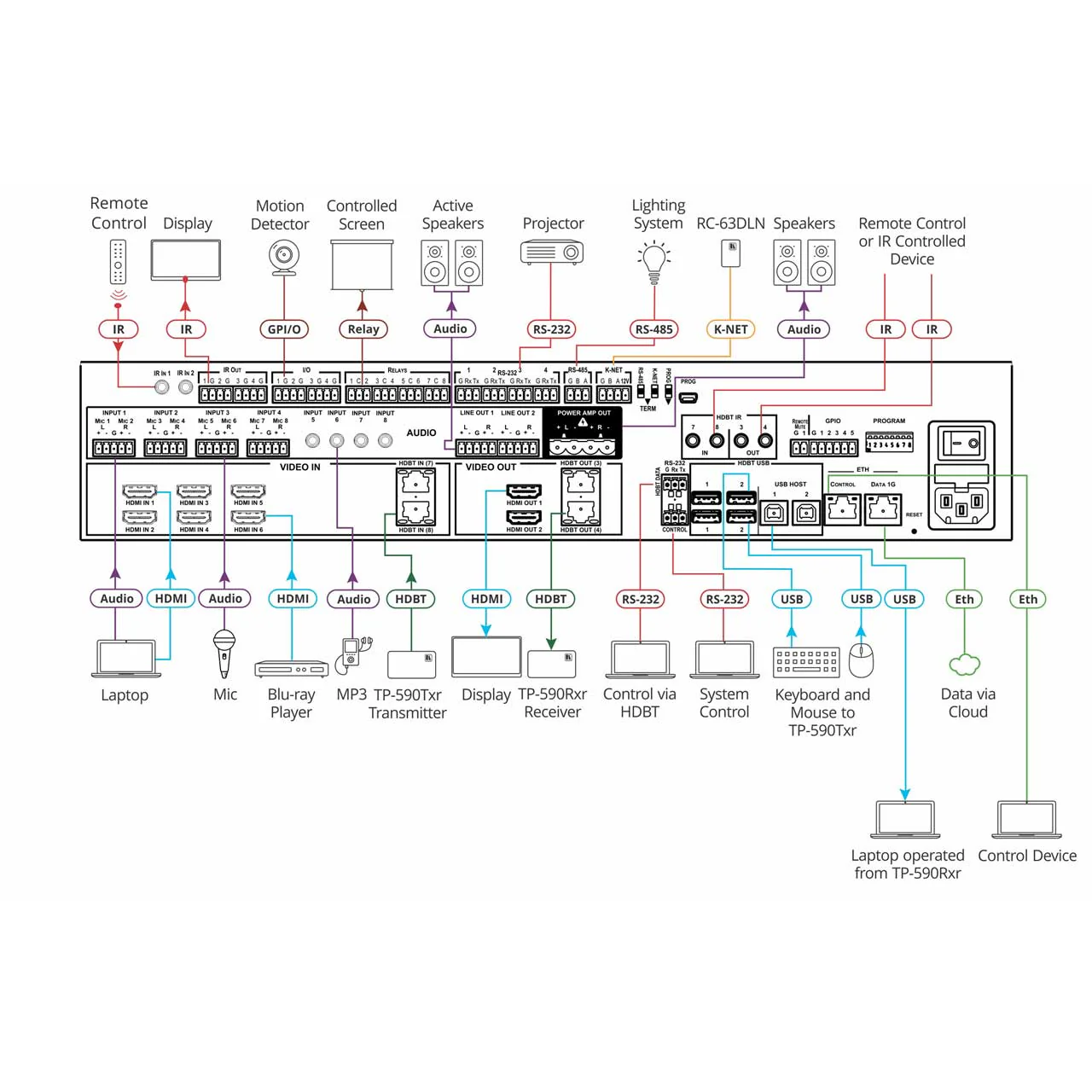

The Kramer VS-84UT is a powerful all-in-one 4K@60Hz (4:2:0) presentation system designed for professional AV environments. This integrated solution combines a high-performance 8x4 matrix switcher, HDBaseT 2.0 range extension, and a programmable master room controller in a single, compact chassis. It supports 6 HDMI inputs and 2 HDBaseT outputs, delivering seamless audio-video distribution with USB extension and PoE capabilities. Advanced audio management features include balanced and unbalanced inputs, de-embedding, and a built-in power amplifier. Designed for reliability in classrooms, lecture theaters, and corporate boardrooms, the VS-84UT simplifies complex AV installations by consolidating matrix switching, signal extension, and device control. Manage remote I/O and automate room actions through the integrated master controller, compatible with Kramer K-Config software. This system ensures high-quality signal integrity over long distances, making it an ideal core for modern, automated presentation spaces.

Video Resolution	4K UHD @60Hz (4:2:0)
Data Rate	10.2Gbps
Inputs	6 HDMI, 2 HDBaseT, 4 Unbalanced Stereo, 4 Balanced Stereo/Mic
Outputs	2 HDMI, 2 HDBaseT, 2 Balanced Stereo, 1 Stereo Speaker (2x50W)
Control Ports	RS-232, RS-485, IR, GPI/O, Relays, Ethernet
Compliance	HDBaseT 2.0, HDCP 1.4
Extension Distance	Up to 180m (590ft) in Ultra Mode
Warranty	Limited 7 Year
