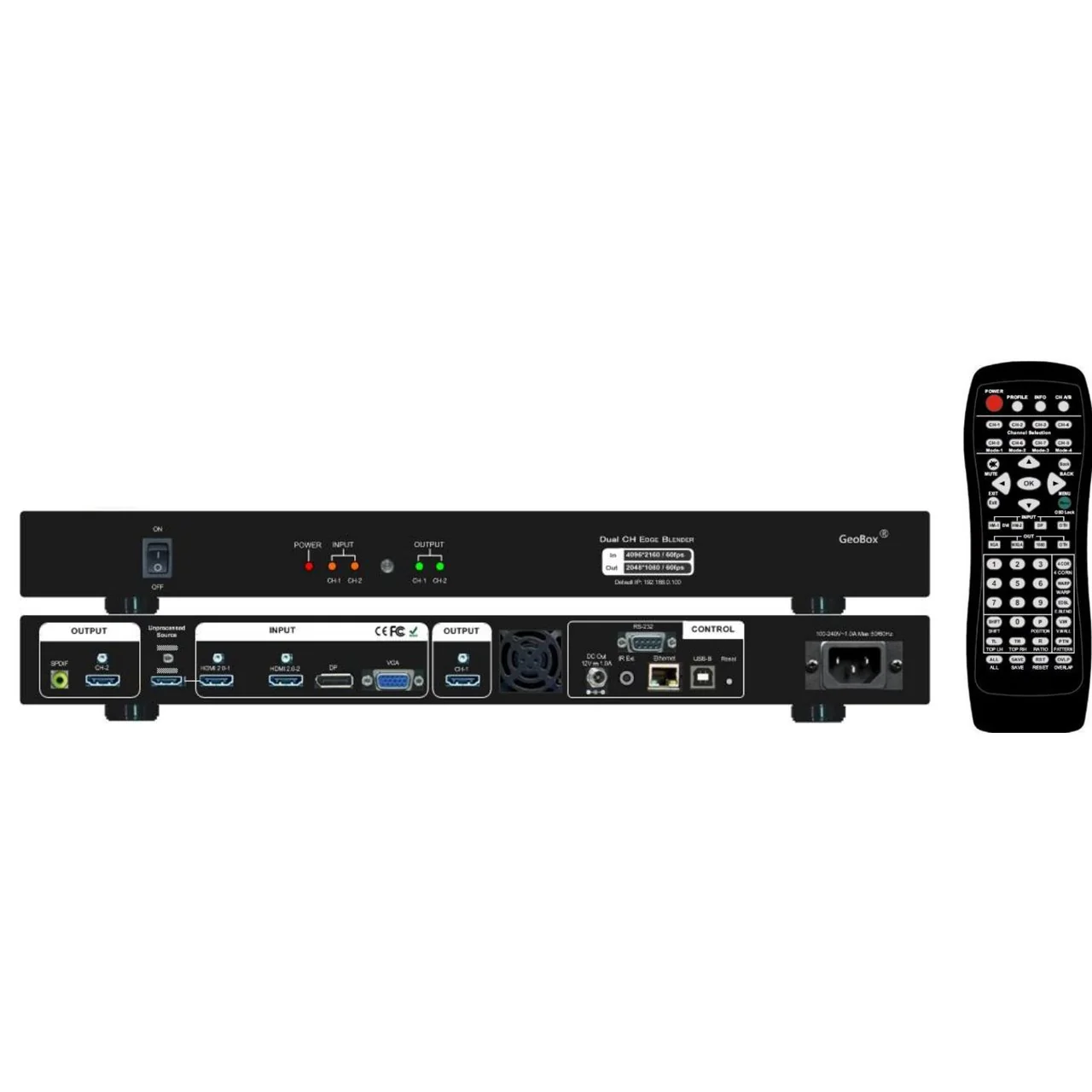

VigilLink GeoBox G812 2 Channel 4K Edge Blending Projection Processor

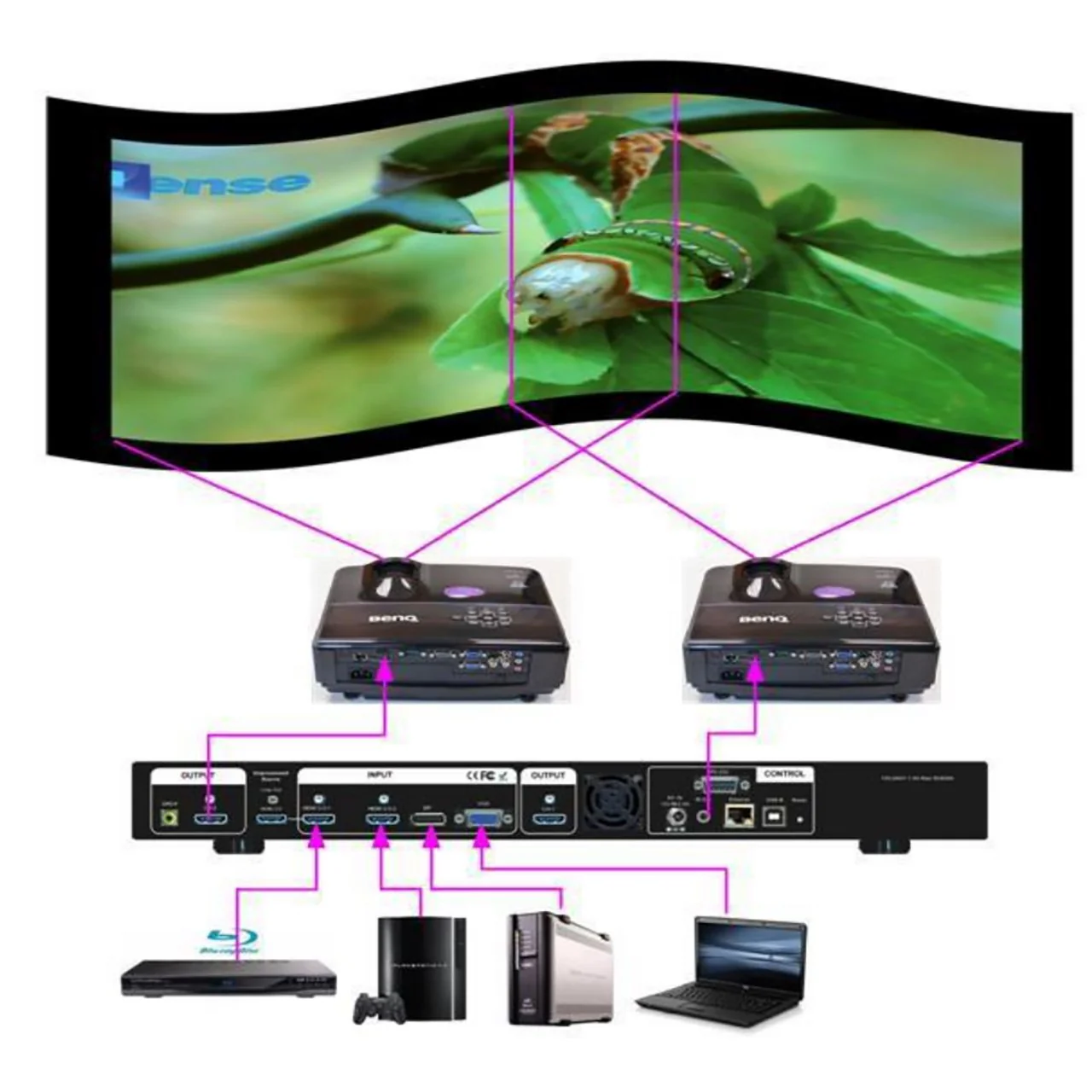

This high-performance processor delivers precise image warping and seamless multi-projector edge blending for professional AV installations. It supports 4K inputs including HDMI 2.0b and DisplayPort 1.2a with 10-bit 4:4:4 chroma sampling for superior clarity. The integrated warp technology allows for sophisticated geometry alignment on curved screens using a 120x68 point grid. Built-in video wall functionality enables image cropping and overlap pixel setting without the need for external splitters. Robust connectivity options include HDMI loop-out for daisy-chaining multiple units in large-scale displays. Designed for 24/7 reliability, it offers intuitive control via WebGUI, USB, or infrared remote.

Input Ports	2x HDMI 2.0b, 1x DP 1.2a, 1x VGA
Output Ports	2x HDMI (Up to 2048x1080 @ 60Hz)
Signal Processing	10-bit 4:4:4 Chroma Sampling
Geometry Alignment	Up to 120x68 point grid pixel fine-tuning
Max Input Resolution	4096x2160 @ 60Hz / 7680x1200 @ 30Hz
Loop Out	1x HDMI 2.0b Loop Port
Power Supply	Dual AC 100-240V or DC 12V
Warranty	6-Year Limited Warranty
