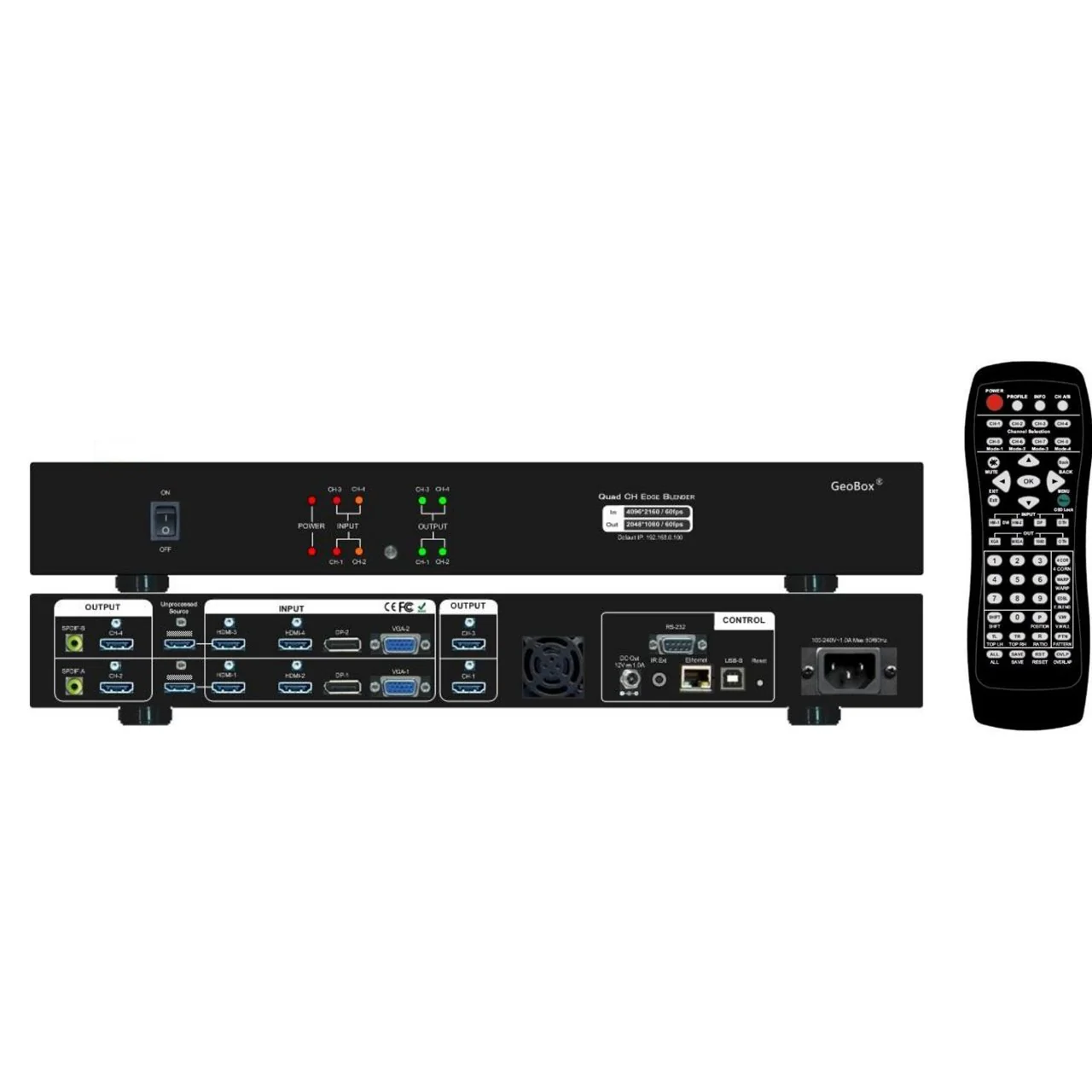

VigilLink GeoBox G814 4-Channel 4K Edge Blending Projection Processor

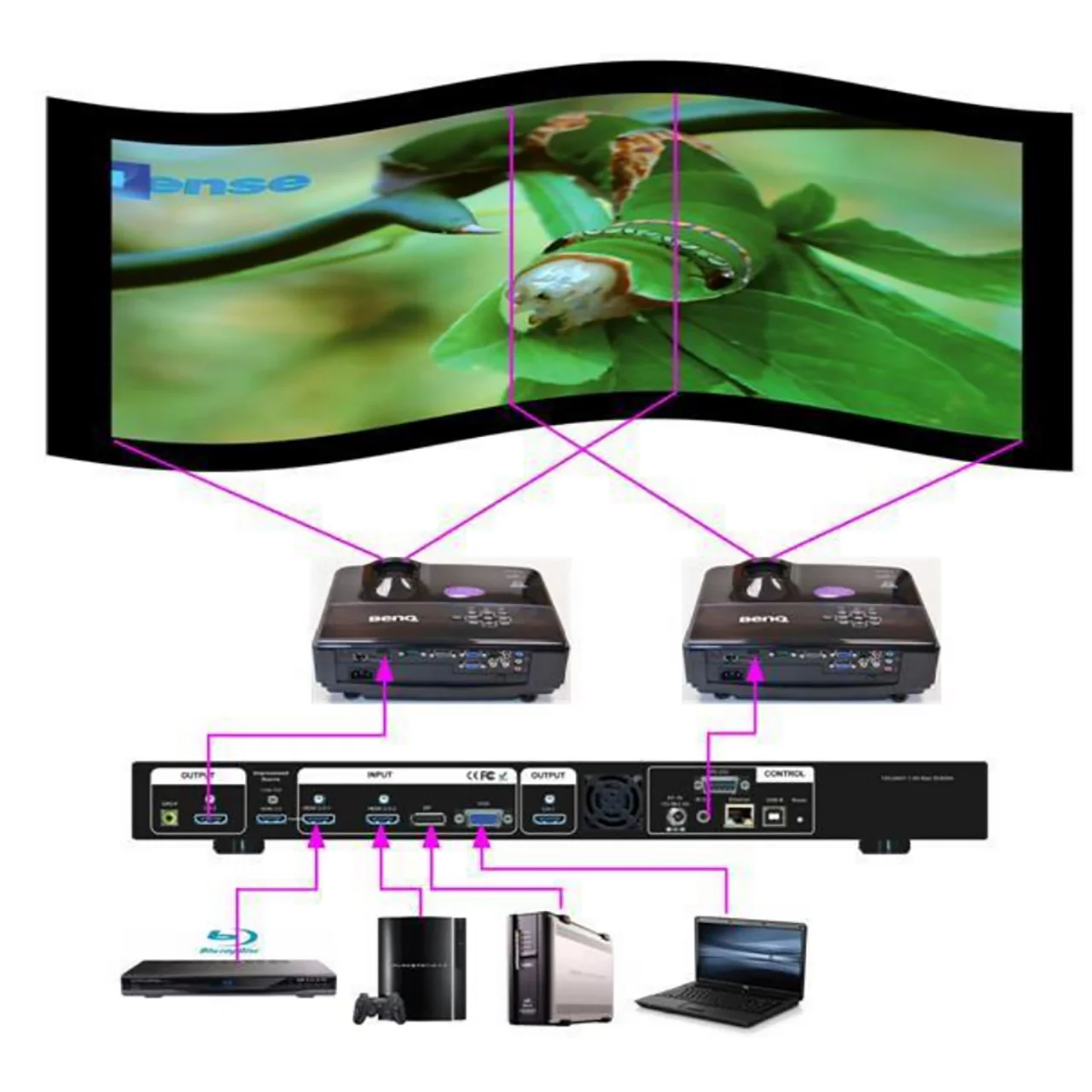

The VigilLink GeoBox G814 is a professional quad-channel processor engineered for advanced edge blending, image warping, and projection mapping. It supports high-resolution inputs up to 4K at 60Hz with 4:4:4 color sampling for pristine visual clarity. Integrated warp technology allows for precise geometry alignment on curved screens using up to 17x9 grid control points. The system features a built-in video wall function, eliminating the need for external splitters or complex PC software. Dual HDMI loop-out ports facilitate seamless daisy-chaining for large-scale multi-unit installations. This 10-bit high-end processor ensures smooth motion and individual color correction across all four output channels.

Input Ports	2x HDMI 2.0b, 1x DP 1.2a, 1x VGA
Output Ports	4x HDMI (Up to 2048x1080 @ 60Hz & WUXGA)
Max Input Resolution	4096x2160 @ 60Hz / 7680x1200 @ 30Hz
Color Processing	10-bit 4:4:4 Chroma Sampling
Edge Blending Control	Up to 17x9 Control Points
Geometry Adjustment	120x68 Grid Pixel Position Fine-Tune
Audio Outputs	Embedded HDMI and SPDIF
Control Options	IR Remote, RS232, WebGUI, USB, and Ethernet
Warranty	6-Year Limited Warranty
