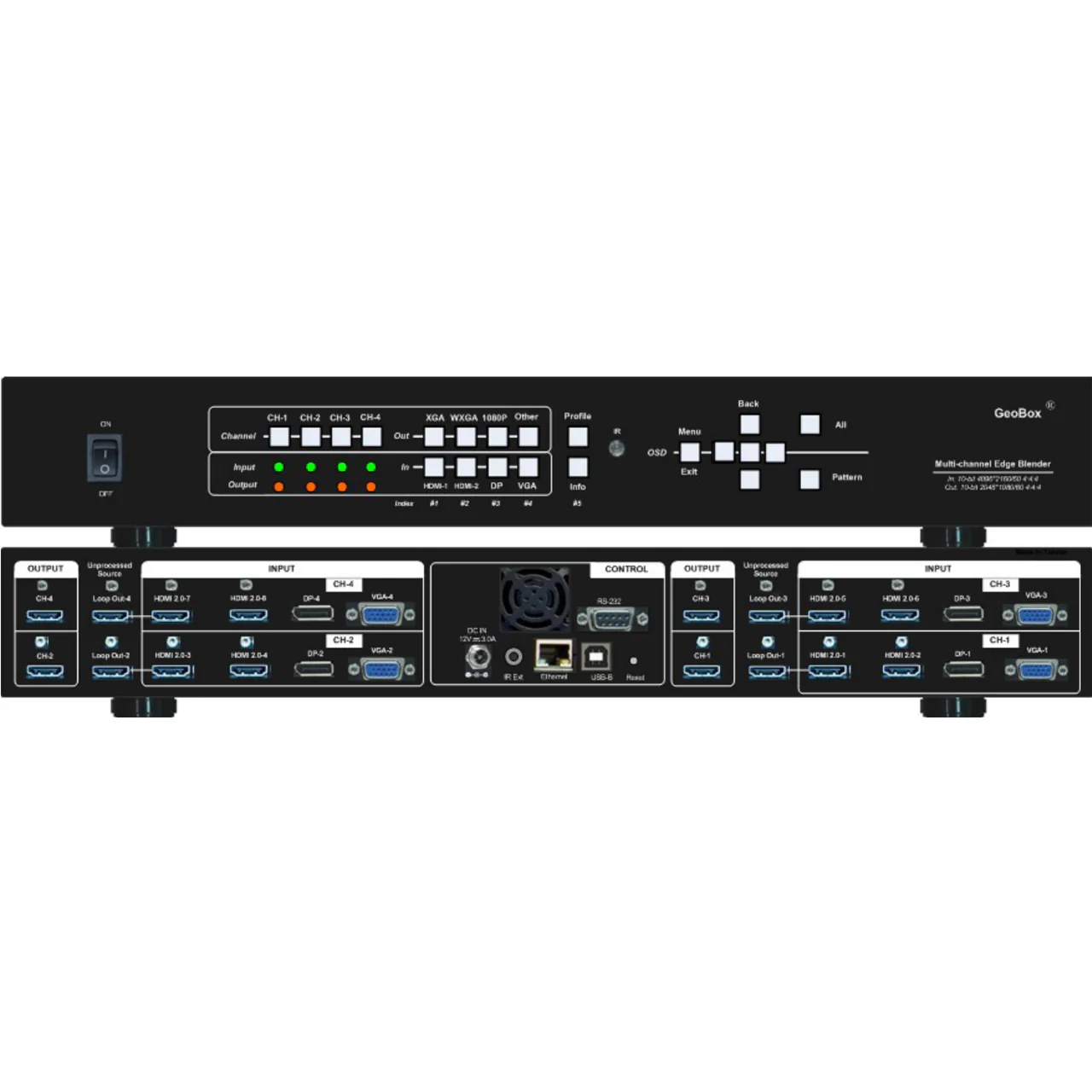

VigilLink GeoBox M804ex 4-Channel 8K30 HDMI Edge Blending Mapping Processor

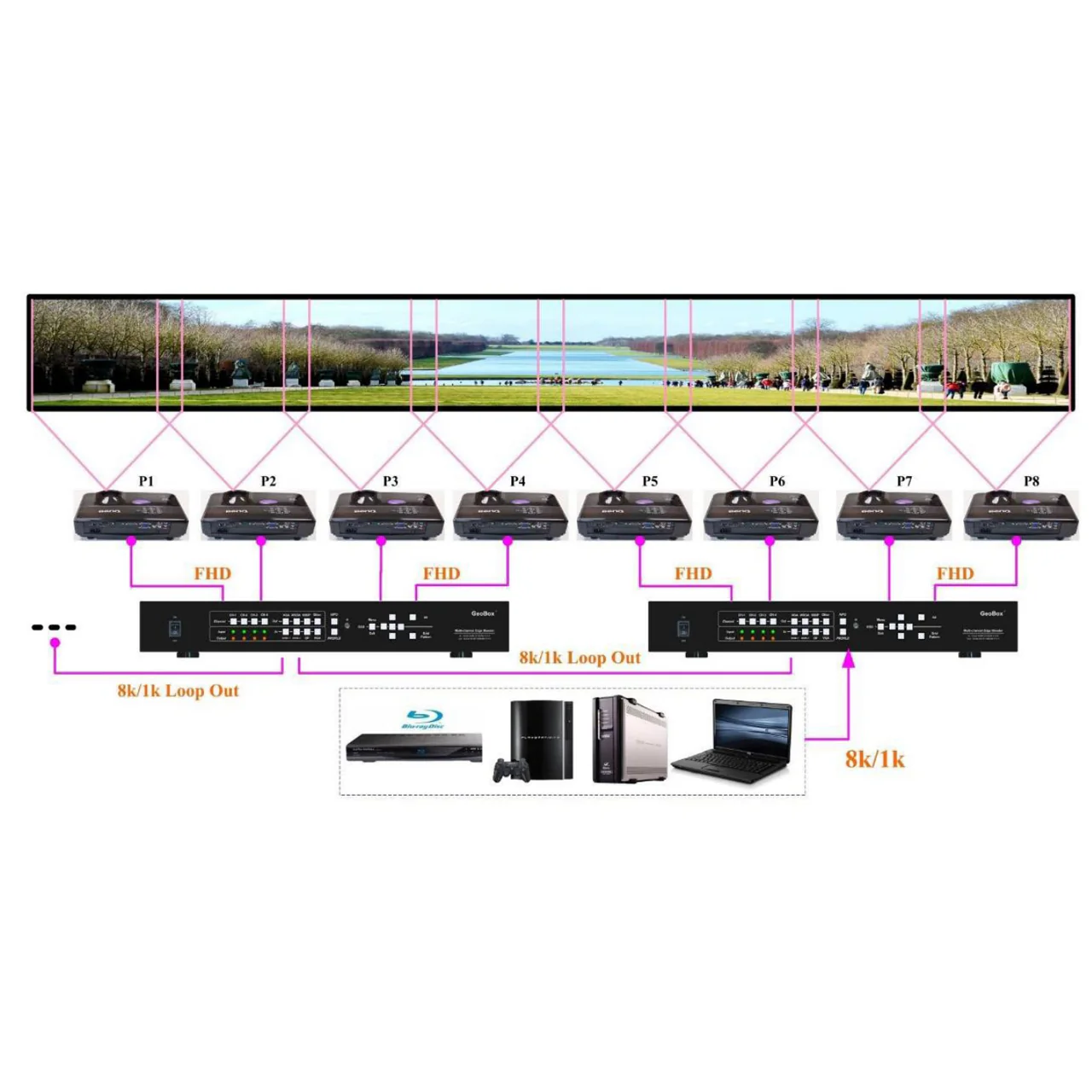

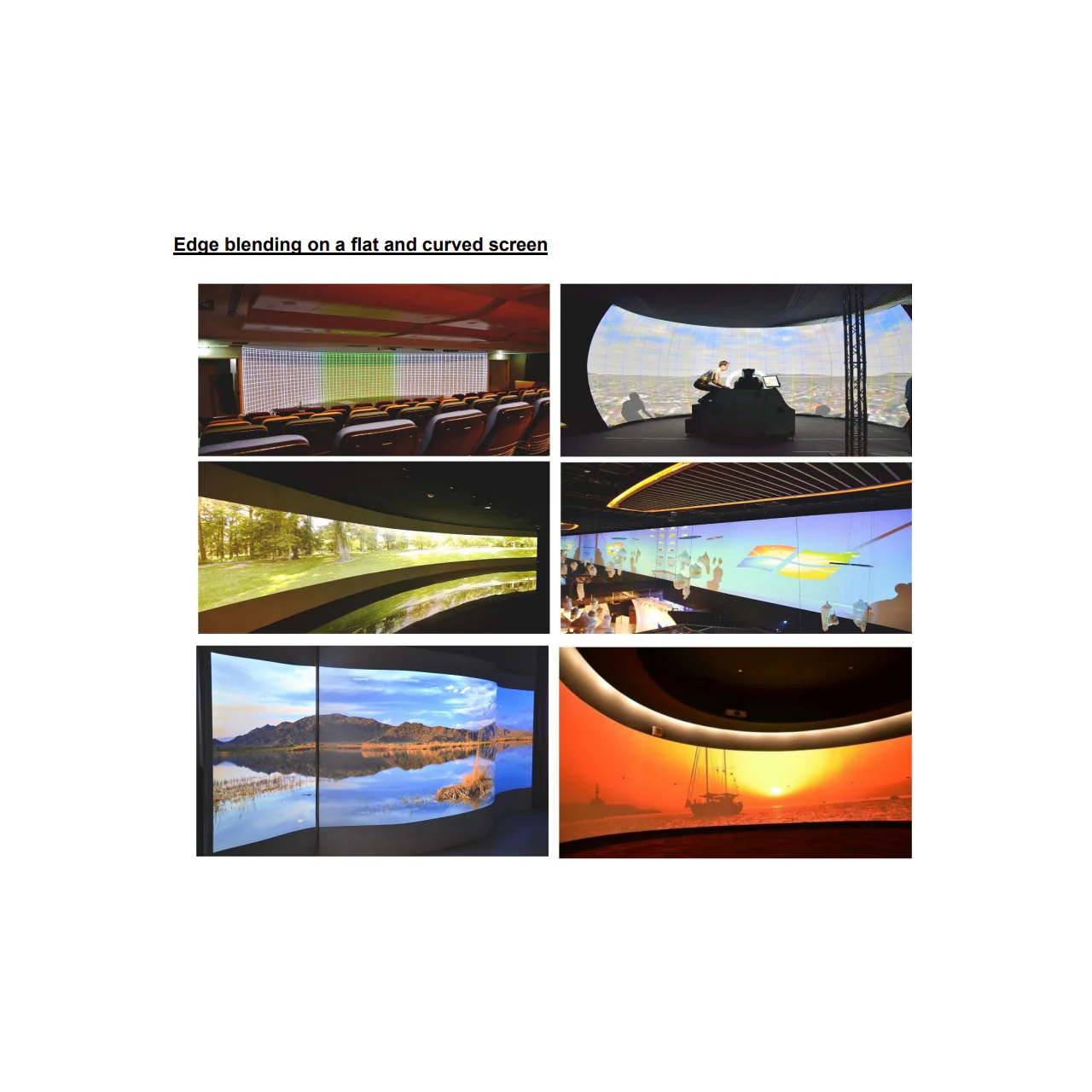

The VigilLink M804ex is a sophisticated quad-channel processor engineered for professional edge blending and intricate projection mapping. It supports high-resolution inputs up to 8K30 or 4K60 with 4:4:4 color sampling to ensure exceptional visual fidelity across expansive displays. Integrated geometry alignment with up to 17x17 control points allows for precise calibration on curved surfaces and 90-degree corners. The innovative digital mapping function streamlines workflows by allowing users to apply custom masks and patterns directly via PC tools. Featuring a robust 10-bit hardware scaling engine, the unit delivers smooth motion and professional-grade de-interlacing for seamless video playback. With embedded video wall capabilities and HDMI loop-out, this processor simplifies complex multi-projector installations without requiring additional splitters.

Channels	4
Input Resolution	Up to 7680x2160 @ 30Hz or 4096x2160 @ 60Hz
Output Resolution	Up to 2048x1080 @ 60Hz per channel
Color Sampling	4:4:4 Chroma
Geometry Alignment	Up to 17x17 control points
System Latency	2 frames (33ms @ 60Hz)
Power Supply	DC 12V / 3.3A
Body Dimensions	11.9 x 6.5 x 1.7 inches
Body Weight	3.33 lbs
