VigilLink M802ex 2-Channel 4K60 HDMI Edge Blending Processor with Mapping

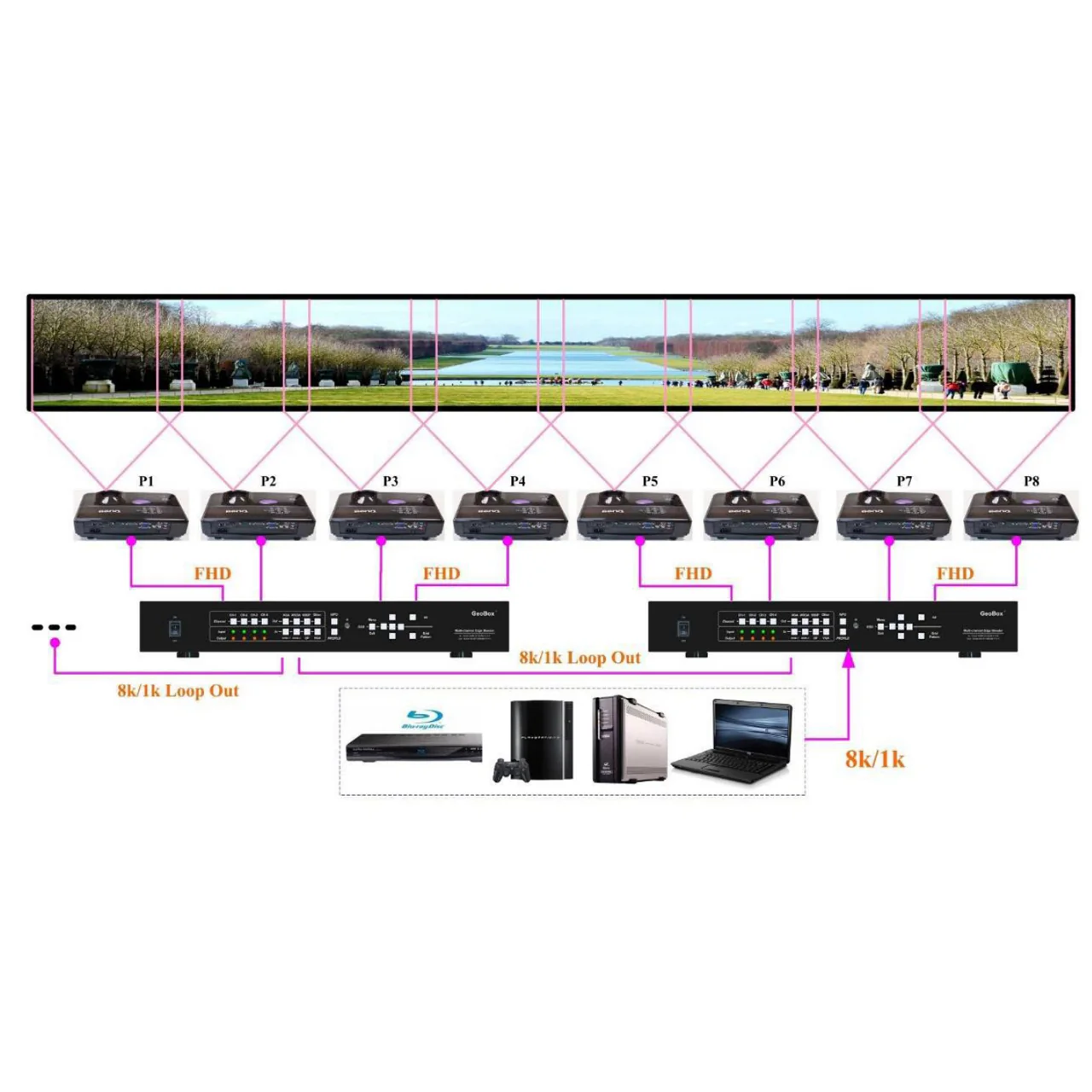

This professional-grade edge blending processor delivers seamless large-scale projection mapping across two channels. It supports high-resolution inputs up to 8K30 and 4K60 with 4:4:4 chroma sampling for exceptional visual fidelity. The integrated digital mapping function allows for precise monochrome pattern masking and intricate geometric adjustments without complex manual intervention. Featuring up to 120x68 warp control points and 10-bit processing, it ensures smooth scaling and de-interlacing. Comprehensive color correction and 9-region black level uplift compensate for projector light leakage and color variations. Built-in video wall capabilities and PIP/POP functions provide versatile display configurations for advanced AV installations.
| Channels | 2 |
| Input Ports | 2x HDMI, 1x DisplayPort, 1x VGA |
| Output Ports | HDMI 1.4 Main Outputs, HDMI Loop-out |
| Max Input Resolution | 7680x2160 @ 30Hz or 7680x1200 @ 60Hz |
| Max Output Resolution | 2048x1080 @ 60Hz |
| Warp Control Points | Up to 120 x 68 |
| HDCP Compliance | Input V2.2/V1.4, Output V1.4 |
| System Latency | 33ms (@60Hz) |
| Power Supply | DC 12V, 3.3A |
| Control Interfaces | Ethernet, RS232, USB, IR, Keypads |
$7,693.00
VigilLink M802ex 2-Channel 4K60 HDMI Edge Blending Processor with Mapping—
$7,693.00
More Images
VigilLink M802ex 2-Channel 4K60 HDMI Edge Blending Processor with Mapping
This professional-grade edge blending processor delivers seamless large-scale projection mapping across two channels. It supports high-resolution inputs up to 8K30 and 4K60 with 4:4:4 chroma sampling for exceptional visual fidelity. The integrated digital mapping function allows for precise monochrome pattern masking and intricate geometric adjustments without complex manual intervention. Featuring up to 120x68 warp control points and 10-bit processing, it ensures smooth scaling and de-interlacing. Comprehensive color correction and 9-region black level uplift compensate for projector light leakage and color variations. Built-in video wall capabilities and PIP/POP functions provide versatile display configurations for advanced AV installations.
| Channels | 2 |
| Input Ports | 2x HDMI, 1x DisplayPort, 1x VGA |
| Output Ports | HDMI 1.4 Main Outputs, HDMI Loop-out |
| Max Input Resolution | 7680x2160 @ 30Hz or 7680x1200 @ 60Hz |
| Max Output Resolution | 2048x1080 @ 60Hz |
| Warp Control Points | Up to 120 x 68 |
| HDCP Compliance | Input V2.2/V1.4, Output V1.4 |
| System Latency | 33ms (@60Hz) |
| Power Supply | DC 12V, 3.3A |
| Control Interfaces | Ethernet, RS232, USB, IR, Keypads |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This professional-grade edge blending processor delivers seamless large-scale projection mapping across two channels. It supports high-resolution inputs up to 8K30 and 4K60 with 4:4:4 chroma sampling for exceptional visual fidelity. The integrated digital mapping function allows for precise monochrome pattern masking and intricate geometric adjustments without complex manual intervention. Featuring up to 120x68 warp control points and 10-bit processing, it ensures smooth scaling and de-interlacing. Comprehensive color correction and 9-region black level uplift compensate for projector light leakage and color variations. Built-in video wall capabilities and PIP/POP functions provide versatile display configurations for advanced AV installations.
| Channels | 2 |
| Input Ports | 2x HDMI, 1x DisplayPort, 1x VGA |
| Output Ports | HDMI 1.4 Main Outputs, HDMI Loop-out |
| Max Input Resolution | 7680x2160 @ 30Hz or 7680x1200 @ 60Hz |
| Max Output Resolution | 2048x1080 @ 60Hz |
| Warp Control Points | Up to 120 x 68 |
| HDCP Compliance | Input V2.2/V1.4, Output V1.4 |
| System Latency | 33ms (@60Hz) |
| Power Supply | DC 12V, 3.3A |
| Control Interfaces | Ethernet, RS232, USB, IR, Keypads |
